Connect A Sensor

To connect your sensor to your Nodeware account, do the following:

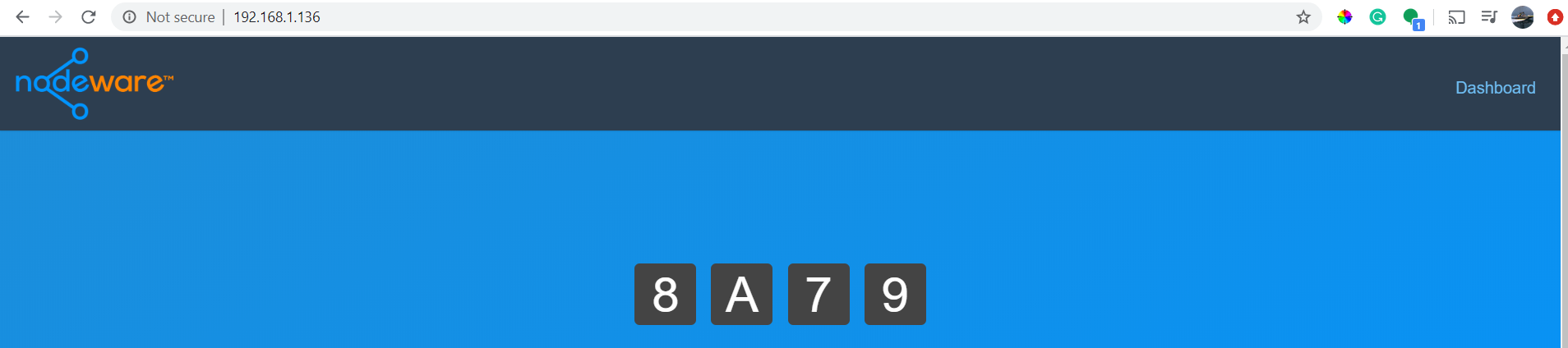

1. In a browser, type in the Nodeware Sensor’s IP Address. A four (4) digit activation code will appear.

NOTE: The machine must be on the same subnet as the Nodeware sensor.

2. Login into the Nodeware Dashboard at https://app.nodeware.com

3. Navigate to Sensors located on the left menu.

4. Click Connect a Sensor located in the upper right corner.

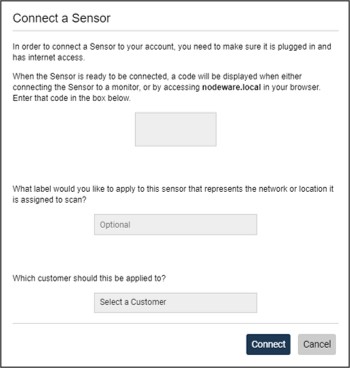

5. The following screen appears:

6. Enter the four (4) digit code from step 1 in the text box.

7. Select the Customer for whom this sensor is related.

    Note: End User accounts will not see the "Select Customer" option. Continue to step 8.

8. Select "Connect" to Activate the sensor.

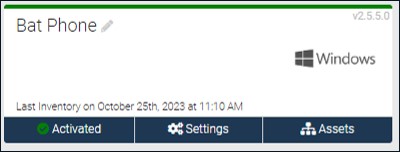

9. The sensor will now appear on the Sensor page in the Nodeware Dashboard.

Click the pencil icon next to the name to rename the sensor.
